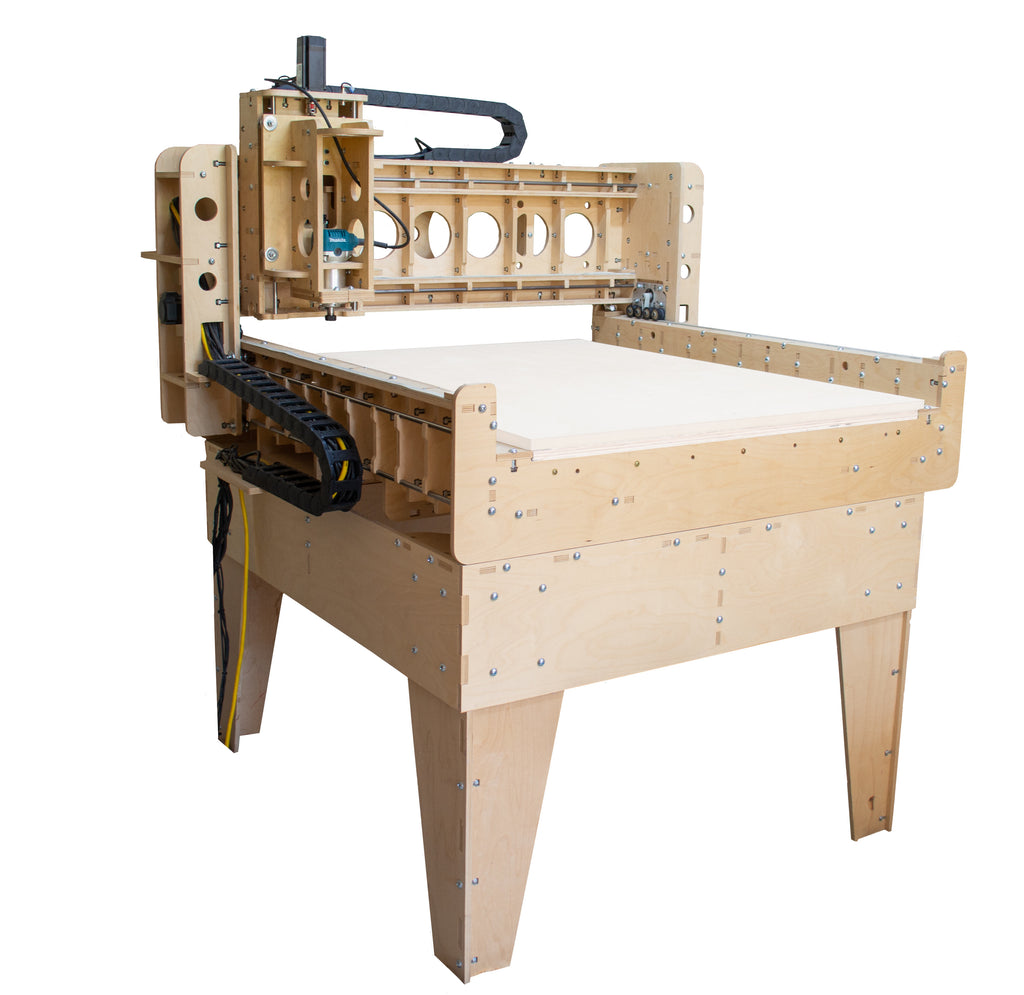

KL733 CNC Router Kit
$2,875.00
Description
Free Shipping (in the lower 48 United States)
Orders are shipped within 4 business days of the purchase date.
Features
The KL7 Series CNC Routers feature an expanded cutting area to let you supersize your projects, nest 2D production jobs, make cabinet accessories, signs, machine rough sawn slabs, plywood panels and more.
- 12mm 9 ply Baltic Birch
- 36"x36" Cutting Area
- SG25U supported rail system

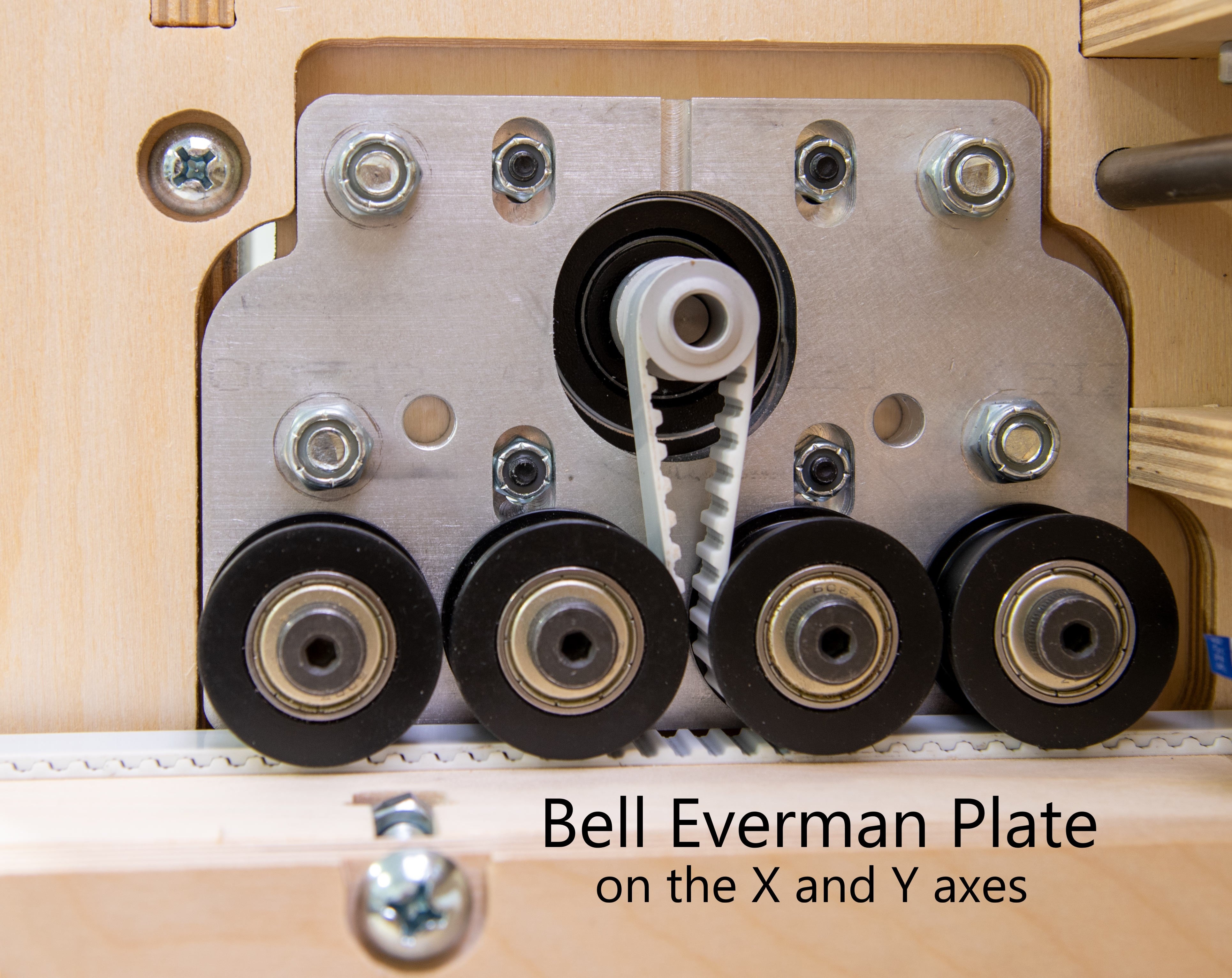

- Steel Reinforced T5x15 Bell-Everman Belt System

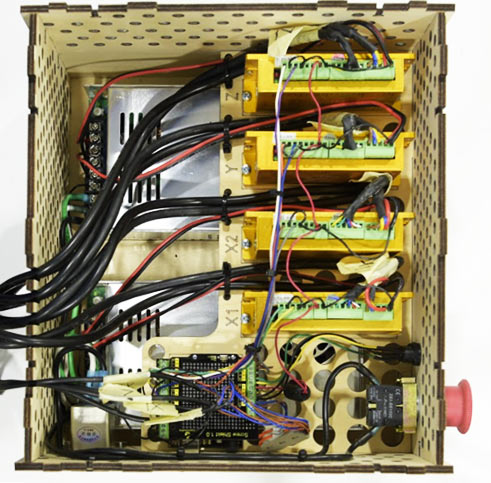

- 425 oz.in NEMA 23 Servo Closed Loop Quadrature Encoder
- Hall Effect Home Switches
- Drag Chain Wire Management
- Makita RT0701C Variable Speed Router included

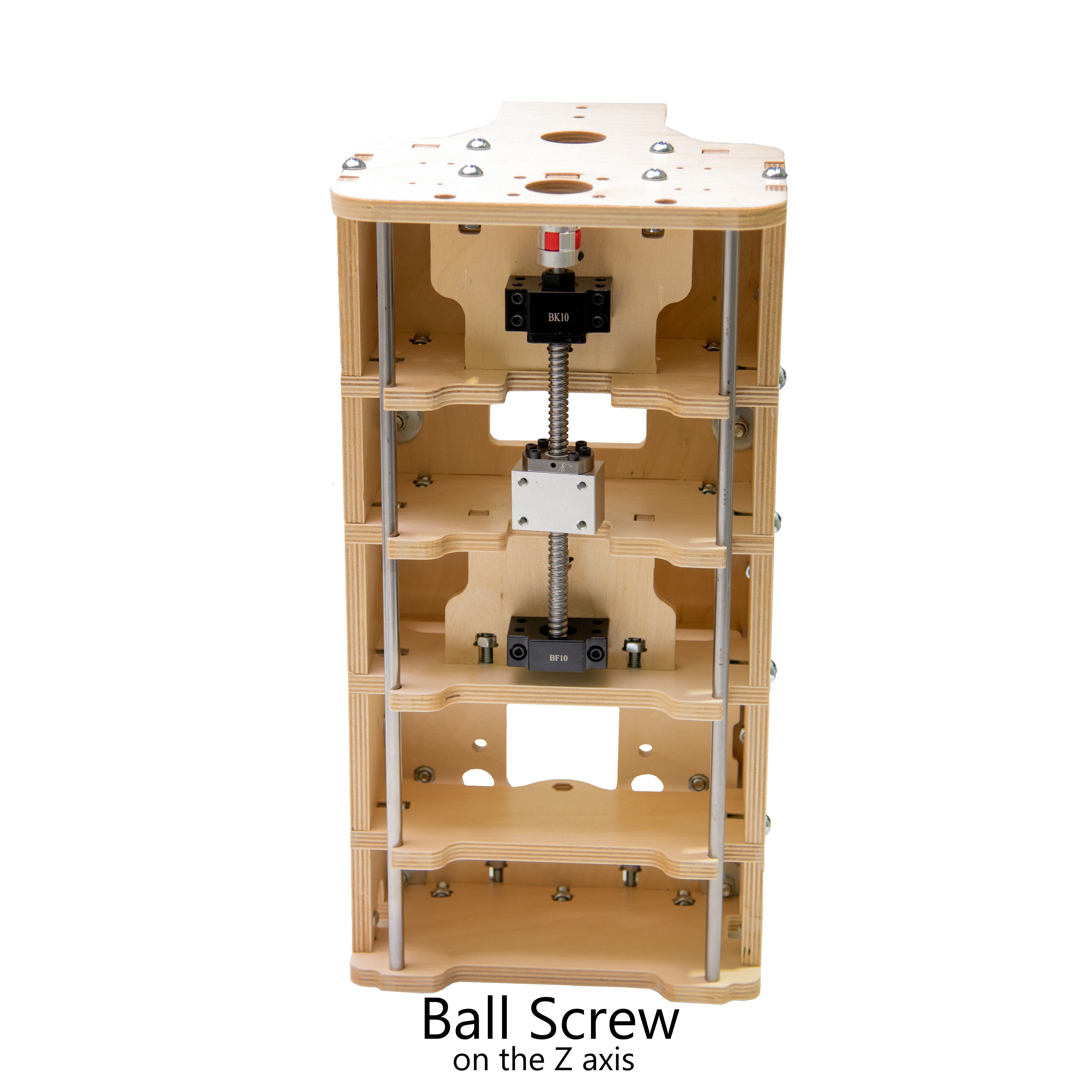

- SFU 1204 Ball Screw on Z-Axis
- Designed to use GRBL firmware on the Arduino Uno.
- Self Squaring Gantry

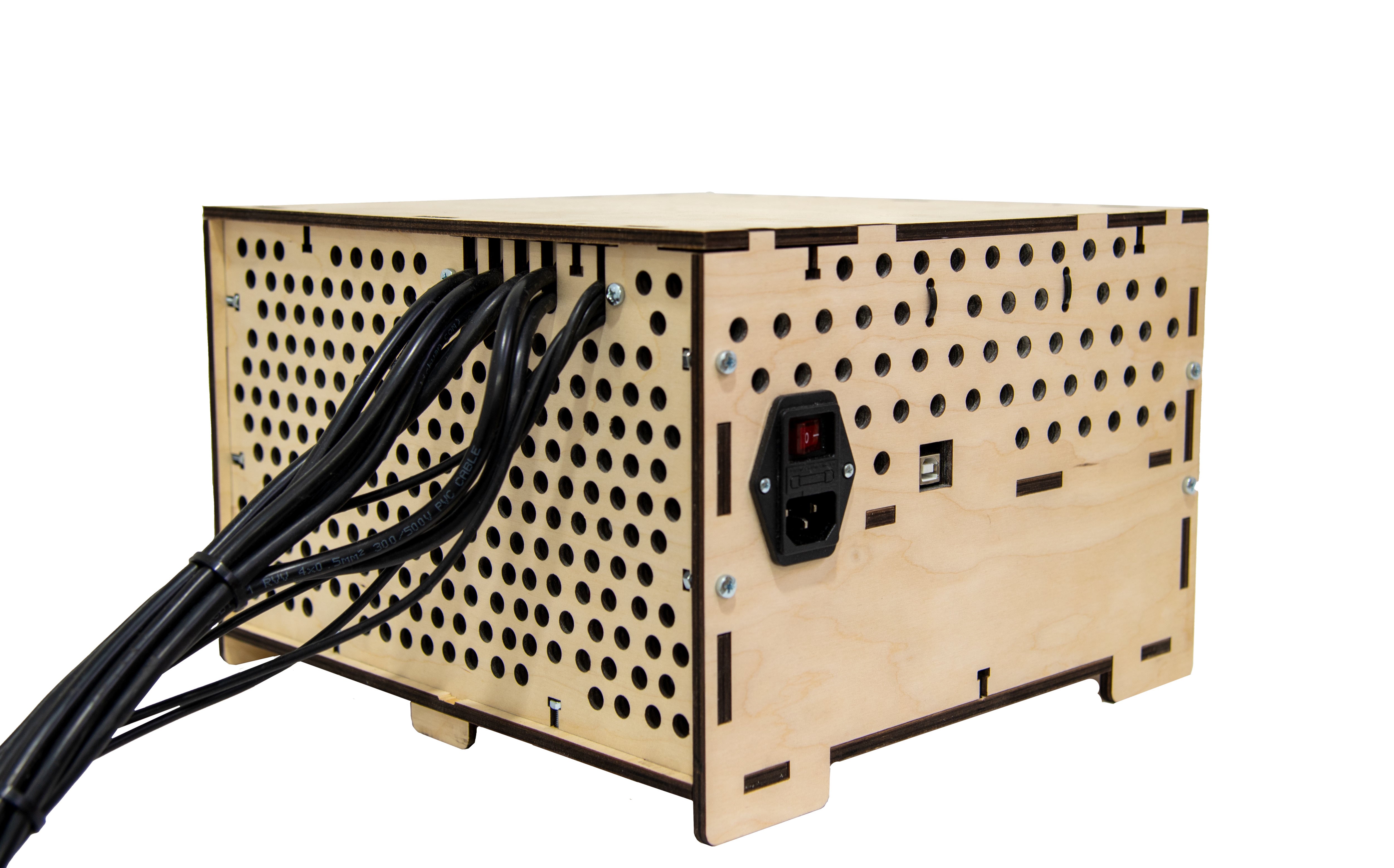

- Dual 48 VDC Power Supply
The assembled footprint:
- Length: 36.25" (921 mm)
- Width: 56.5" (1435 mm)
- Height: 37" (940 mm)

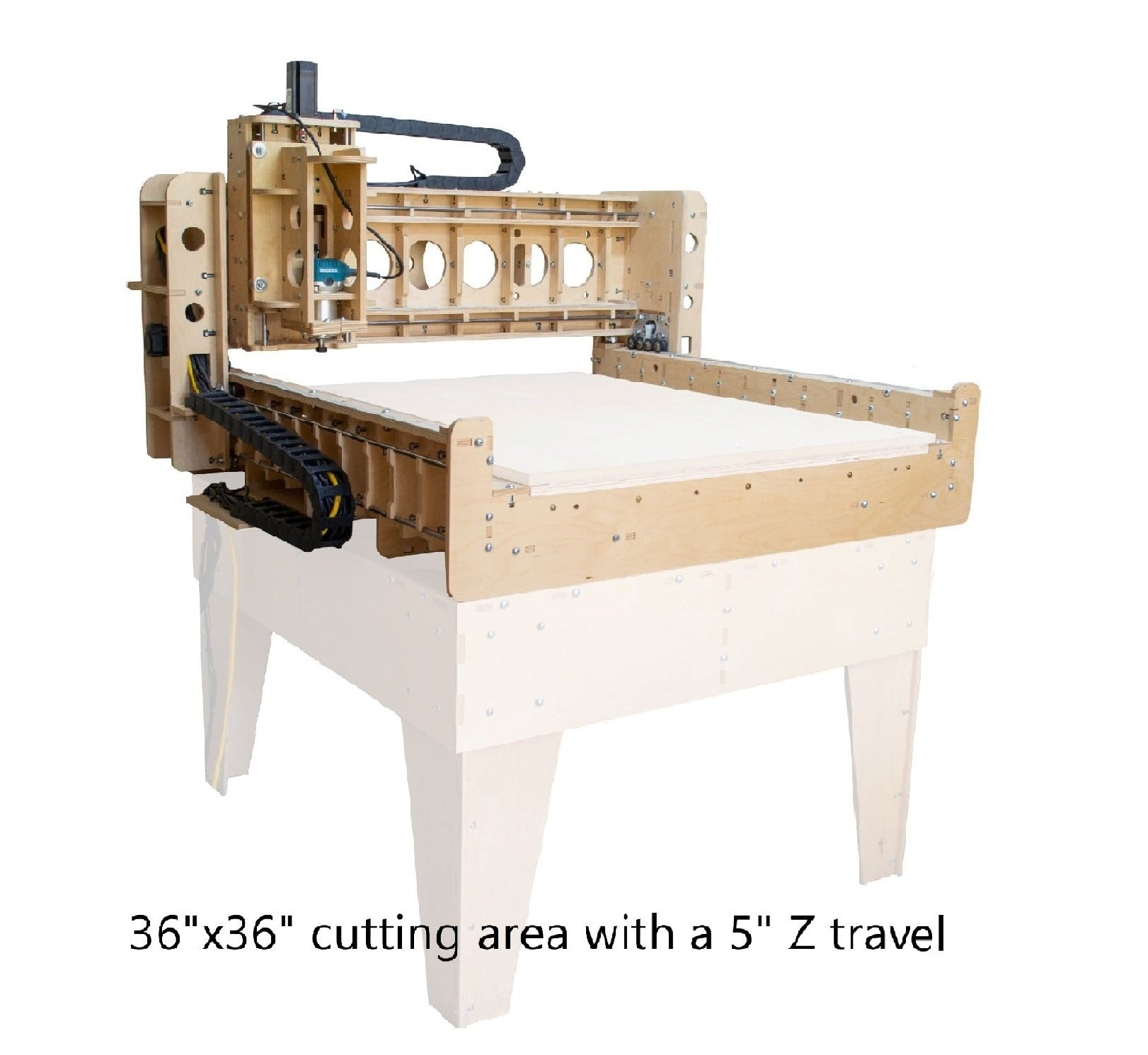

Cutting Area:
- X: 36" ( 915mm)
- Y: 36" (915 mm)
- Z: 5" (127 mm)
- Gantry Clearance: 4.5" (114 mm)
Specifications
| Material | 12 mm 9 ply Baltic Birch |
| Router Spindle | Makita RT0701C |
| Spindle RPMs | 10k to 30k |
| Processor Firmware | GRBL v. 1.1 |
| Controller | Uno Controller |
| Recommended Gcode Sender | UGS Platform |
| X,Y Axis | T5 x 15 mm Bell-Everman Servo Drive |
| Z Axis | SFU 1204 Ball Screw |
| Rail System | Supported Rails, 3/8” Stress Proof Steel |
| Power Supply AC | Dual 48 VDC 7 Amps |
| Input | 110 VAC |
| Drive Motors | NEMA 23 Servo Closed Loop Quadrature Encoder |
| Holding Torque | 3 Nm (425 oz. in.) |
| Servo Resolution X and Y axes | 0.001” (0.025 mm) |
| Servo Resolution Z axis | 0.00007” (0.002 mm) |
| Repeatability | 0.002” to 0.004” (0.05 mm to 0.1 mm) |
| Wire Management | Drag Chain |

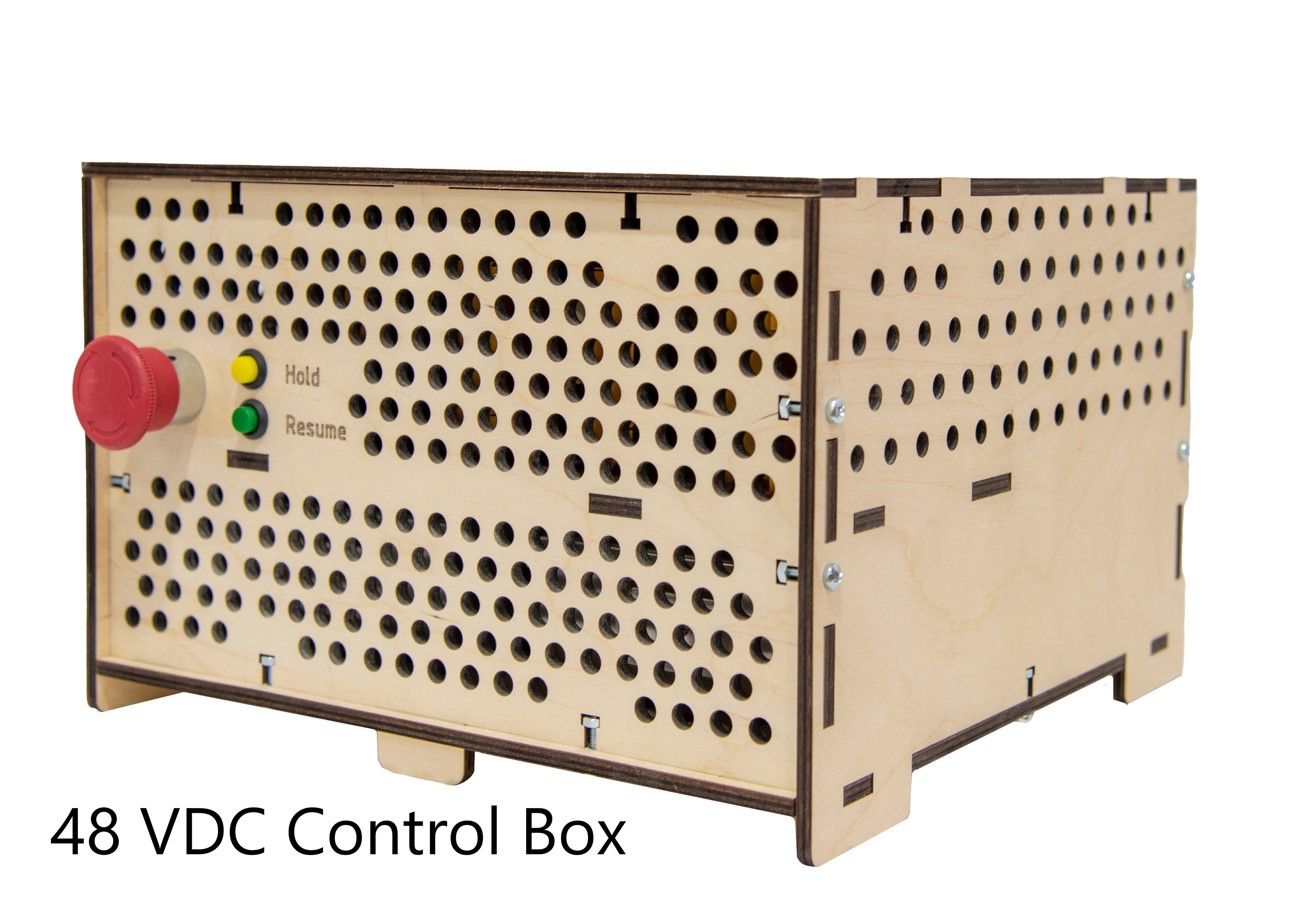

| Hardware Controls | Hold, Resume, and Emergency Stop |
| Home Switches | Hall Effect with Self-Squaring Gantry |
| Shipping weight | 185 lbs (5 boxes) |
