Quantum Max Starter Bundle
Description
Free shipping in the lower 48 United States.

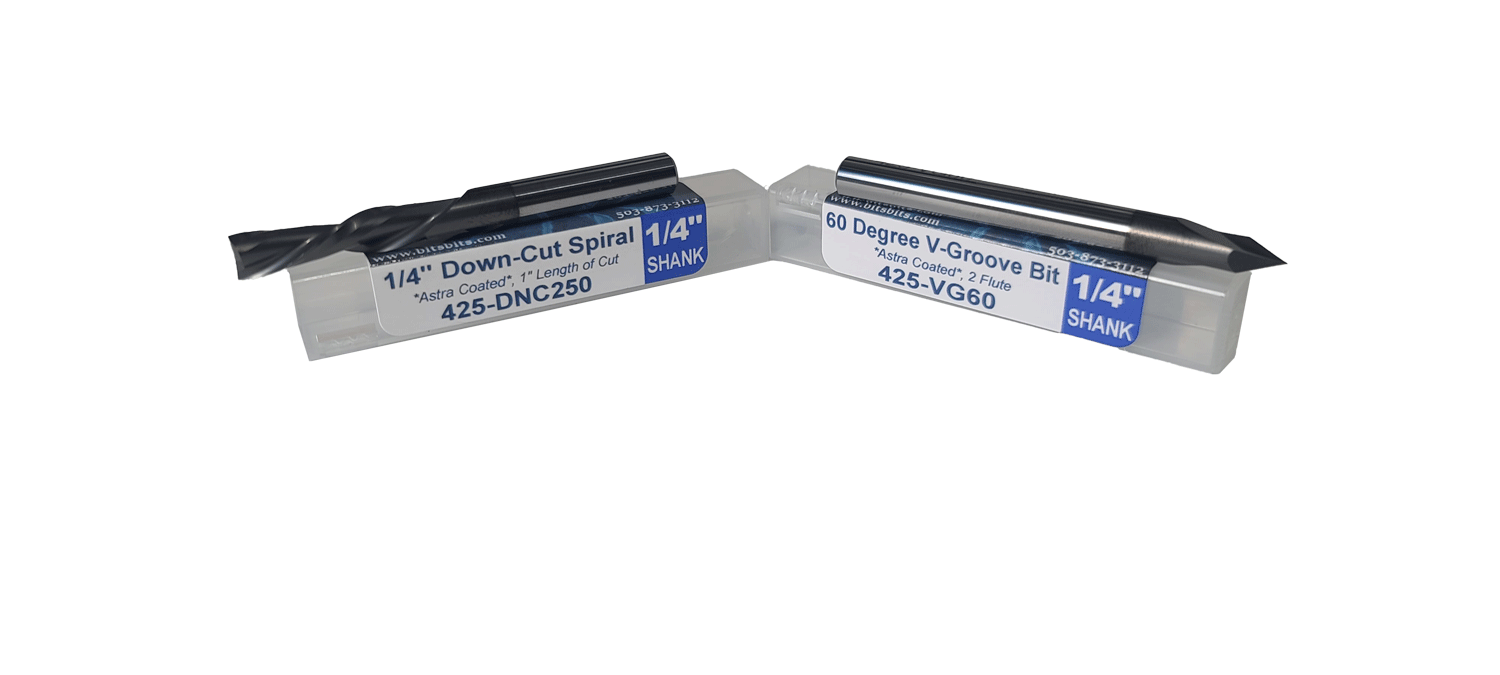

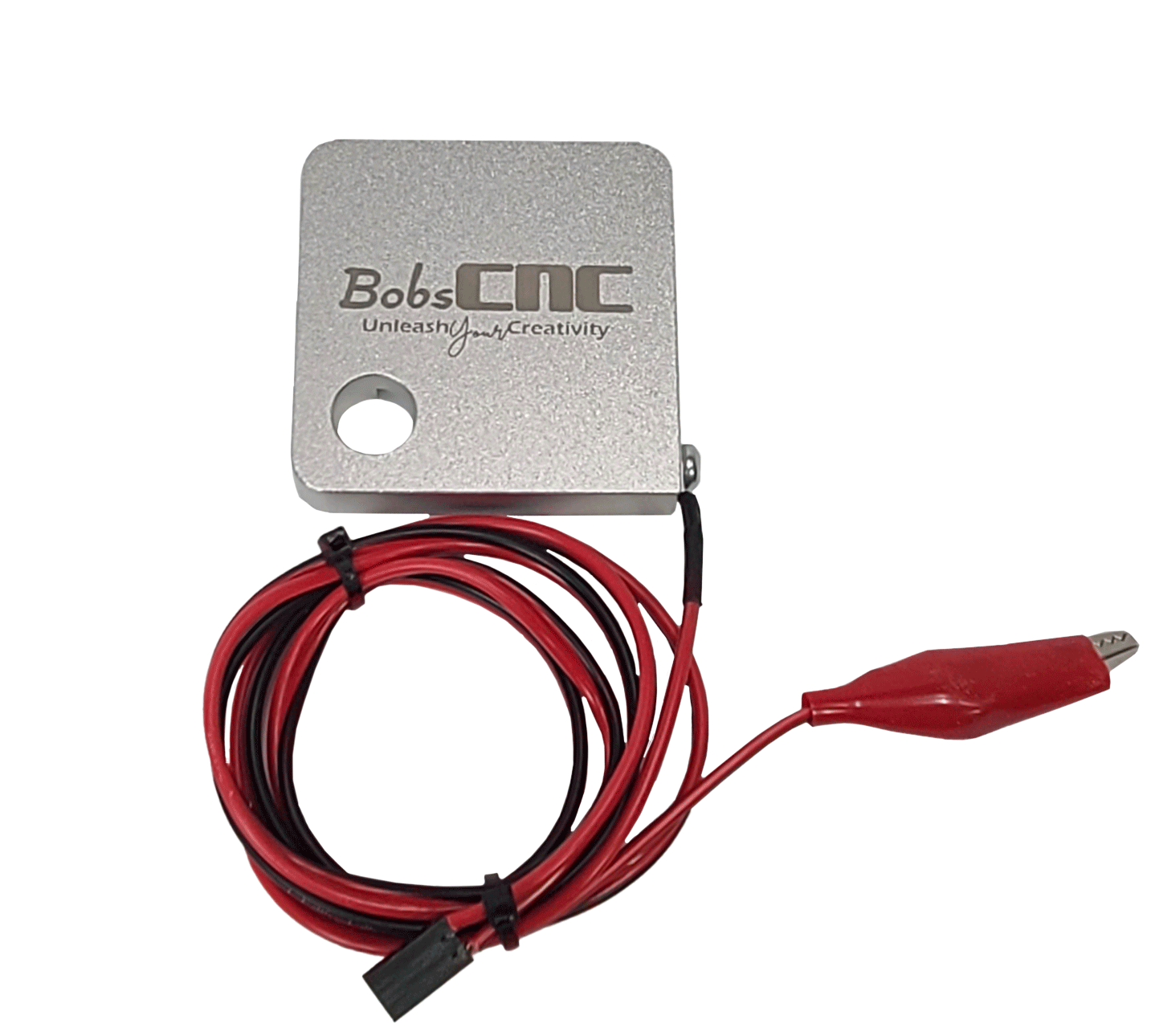

The Quantum Max Starter Bundle includes the Quantum Max CNC Router Kit, XYZ Touch Probe, Vectric's VCarve Pro Software, and (1) Down-cut Spiral and (1) V-Groove Bit from Bits&Bits.
Features
The Quantum Max CNC Router (24” X 50.5”) is our popular desktop kit available today. Whether cutting 2.5D projects or 3D carving, they are great machines for making signs, home décor projects, models and so much more.
A rigid laser cut frame
SG20U supported rail system
GT2 belt drive on X and Y-axis
Tr8 Acme Rod mounted with an ACME Nut on the Z-axis
NEMA 17 Stepper Motors
Home switches on all axes
Self-Squaring Gantry
1/2” MDF with Aluminum T- Slot Spoilboard
Makita RT0701C Variable Speed Router included
Designed to use GRBL1.1 firmware on the Arduino Uno.
Repeatability of 0.002” to 0.004”
Specifications
The assembled footprint:
Length: 63"
Width: 40"
Height: 22"
Weight: 58 lbs
Cutting Area:
X: 50.5" (1283 mm)
Y: 24" ( 610mm)
Z: 3.8" (98 mm)
